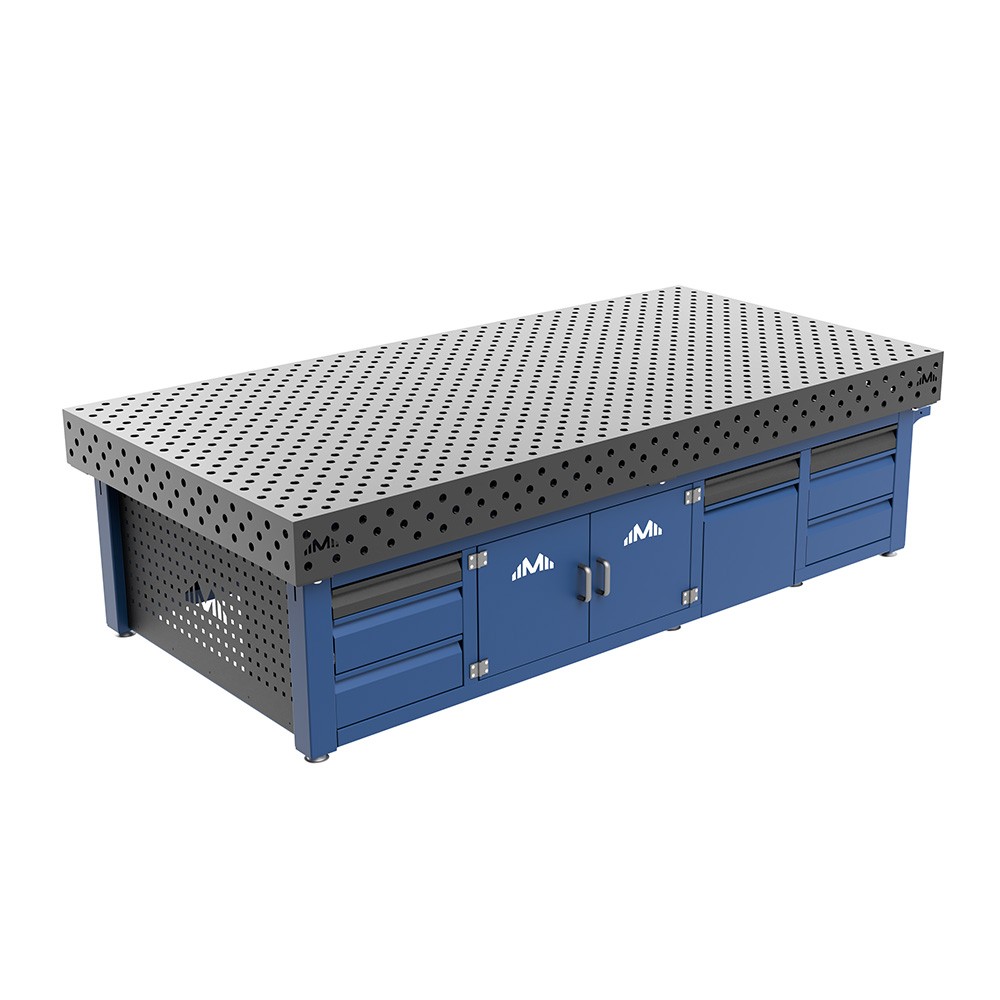

3000×1500 Workstation System 16/28 – a workspace for the most demanding tasks

The 3000×1500 mm workstation is designed for workshops and industrial facilities that require a large, stable, and fully modular workspace. It is the largest model in the range – engineered for serial production, assembly of large-scale structures, steel components, and projects requiring multiple reference points. The tabletop, made of 15 mm thick steel plates and supported by massive ribs, guarantees exceptional rigidity and flatness, ensuring precise operations even under maximum load.

Large working surface – more possibilities

The 3000×1500 mm surface allows several operators to work simultaneously and enables large structures to be positioned without the need for rotation or splitting the process into stages. The engraved 100×100 mm grid across the surface simplifies component positioning, while the chamfered 16 or 28 mm system holes ensure quick installation of pins, stops, and clamps without the risk of damage. High 200 mm side walls and 185 mm support ribs stabilize the entire structure, and with a load capacity of up to 2800 kg, you can safely handle heavy steel segments.

Precision and stability in a large format

Despite the large working area, the tabletop flatness tolerance does not exceed 0.5 mm across the entire surface. This means that even with components several meters long, you maintain full control over the geometry of your structures. The 15 mm thick tabletop resists thermal and mechanical deformation, while the rigid support frame ensures stability even during dynamic welding operations. As a result, assembly and welding processes are faster, and the amount of rework after welding is minimal.

Efficiency and organization for large-scale projects

A larger tabletop offers not only working comfort but also real time savings. With larger components, there is no need to rotate or reposition them, and reference points can be replicated across the entire table. Four spacious drawers for tools, a mobile accessory container, and a dedicated clamp holder help keep the workspace organized and reduce setup time. The adjustable working height of approx. 850–950 mm improves ergonomics, even during long operations.

System 16 or 28 – versatility and compatibility

The 3000×1500 workstation is available in two hole system variants – 16 mm and 28 mm – allowing you to adapt it to the nature of your production and your existing accessories. The 16 mm system is ideal for precise work on thin-walled components, prototypes, and lightweight structures, while the 28 mm system offers greater fixture rigidity and the ability to secure large and heavy parts. This means one table can support both precision work and heavy-duty assembly.

Maximum durability and wear resistance

All structural components are made from high-grade steel and coated with a durable RAL 5005 powder finish that resists mechanical damage and spatter. The engraved grid is highly durable and wear-resistant, and chamfered hole edges prevent burr formation and damage to pins. The entire structure is engineered to maintain its functional parameters for many years of intensive use.

A professional workstation for large-scale constructions

This workstation model was created for professionals who work on projects requiring a large workspace and a stable working platform. It is ideal for construction companies, metalworking and production workshops, and for building machinery, frames, trolleys, and steel structural components. It’s a complete workstation that enhances productivity, improves precision, and helps you fully utilize your workshop’s potential.

FAQ

What applications is the 3000×1500 workstation best suited for?

The 3000×1500 model is ideal for large structures, serial production, and oversized steel components. The large working surface allows you to work without repositioning parts.

Is flatness maintained with this table size?

Yes. Despite its large dimensions, the flatness tolerance is a maximum of 0.5 mm across the entire surface, ensuring that part geometry remains stable.

What accessories are compatible with this model?

The table is compatible with the full range of 16 mm or 28 mm system accessories – pins, stops, clamps, angle brackets, and locating fixtures.

Can heavy components be processed on the table?

Yes, the structure can handle loads up to 2800 kg, allowing heavy components to be clamped and processed without the risk of deformation.

Can the table be expanded with additional modules?

Yes, the standard 100×100 mm grid and system holes allow it to be connected with other tables or modules, expanding the workstation as needed.
