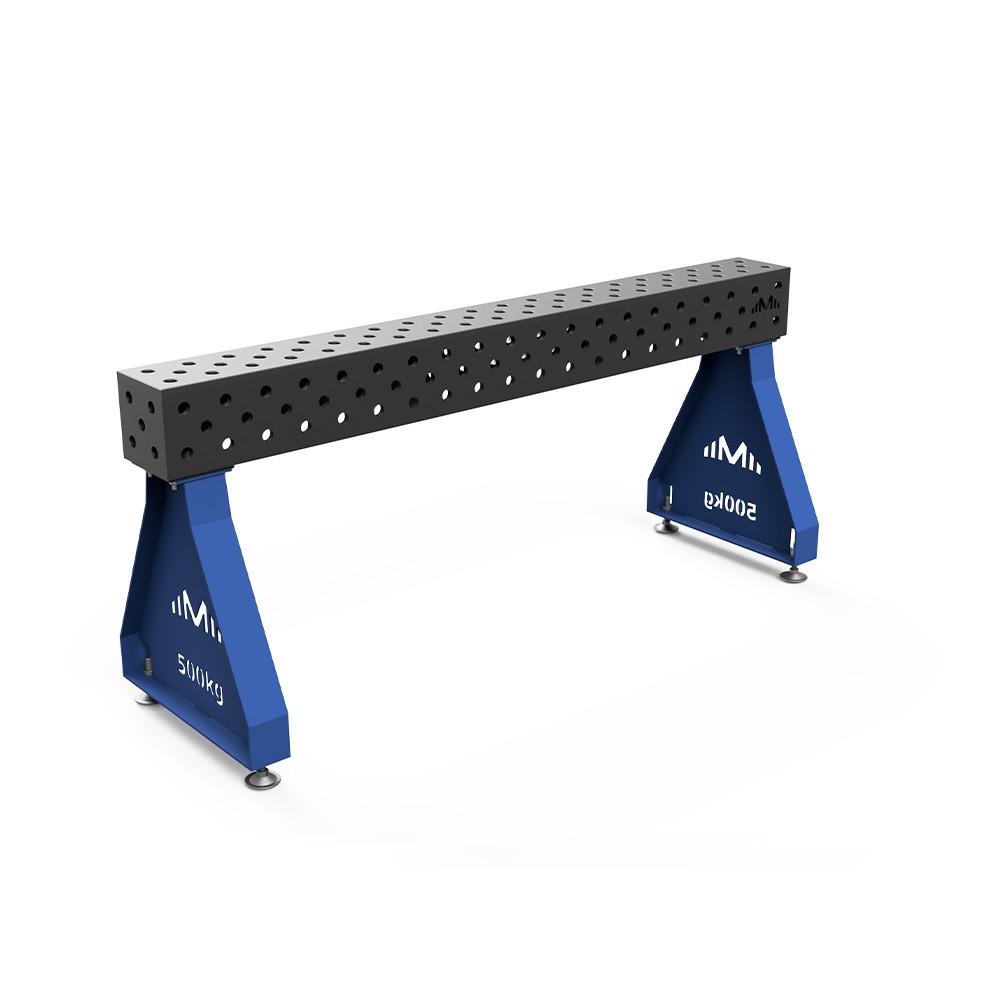

Welding Support 2000 mm – for Repetitive Guiding of Long Workpieces

This support was created for elements that require long, stable support and precise axial guidance. The 2000 mm version allows comfortable handling of profiles, frames, and structural sections stretched far from the main worktop. A solid working plate and rigid leg ensure the part does not “sag” during heating, letting the welder focus on weld quality instead of constantly correcting the position.

How It Works Within the Station Setup

The support functionally extends the surface of the table: you place it in line with the work area, level it with the table top, and connect the clamping system. In practice, it acts as an extension of the table, taking on the weight and maintaining height of the workpiece, eliminating stresses from dragging the element across the surface. Precise axial support means fewer shifts during tack welding and fewer geometry corrections after cooling.

Height Adjustment and Stability

The adjustment mechanism allows quick alignment with the table level, even when working on uneven floors. Once set, the lock secures the system, providing a rigid, repeatable reference. This is especially important for long profiles and tubes—uniform support prevents twisting and uncontrolled bends, resulting in straighter welds.

Compatibility with Hole System and Accessories

The support is available in versions adapted to the hole grids of system tables, enabling the use of standard pins, clamps, and stops without adapters. This makes station setup quick, and accessories function exactly as on the main worktop. It’s crucial in production halls where each station must immediately accept a repeatable clamping setup.

Platform for Long and Slender Elements

For thin-walled profiles and steel sections of considerable length, the support acts as a stable work platform. Instead of improvised props, you have a full-size, deformation-resistant support point that carries loads without springing. As a result, the weld path remains level, and penetration and bead shape are predictable along the entire length.

What You Gain Immediately

Introducing the support into daily work organizes the station and shortens series preparation time. The operator has a stable, rigid reference, making it easier to maintain consistent dimensions and angles across assemblies.

• Stable support and level along 2000 mm,
• Fewer geometry corrections after cooling,
• Faster setup for repetitive weld series.

Practical Tips

Start by aligning the support level with the table height, then set the workpieces and clamping system. For long profiles, distribute clamping points along the weld line to avoid forces pulling the element off-axis. If working with pipes or elements of varying stiffness, add intermediate supports/stops to absorb local loads. After work, clean the surface of spatter and chips; a thin anti-spatter coating will aid maintenance and ensure consistent contact.

FAQ – Frequently Asked Questions

What is the 2000 mm welding support used for?

It is used for stable support and guiding of long workpieces—acting as a table extension that carries weight and maintains consistent height in axis.

Does the support have adjustable height?

Yes, the adjustment allows precise leveling with the table, even on uneven floors, ensuring stable and repeatable work.

Which tables is it compatible with?

It is available in versions matching popular system table hole grids—choose the variant suited to your worktop and accessories.

Is it suitable for slender elements prone to deformation?

Yes, it serves as a rigid work platform for profiles and pipes; even support prevents twisting and distortion during heating.

What are the benefits in series production?

Faster setup, repeatable support level, and fewer post-welding corrections, which shortens cycle time and stabilizes quality.
